Pagoda Tent
introduction
Features of Pagoda Tent
Modern fashion appearance
Super weatherability
A solid structure
Outstanding environmental protection
Excellent cost performance
Wide range of applicable scenarios
Project Pictures

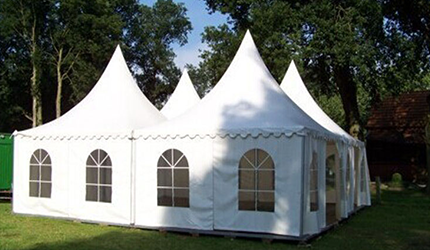

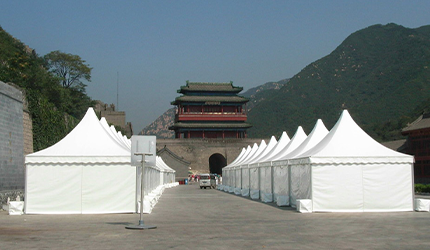

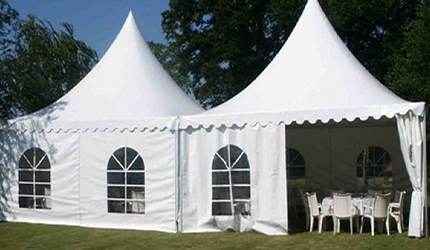

Project Pictures of Pagoda Tent
Easy to Assemble
The pagoda tent adopts a modular design and its aluminum alloy frame is very lightweight. Thus, it can still be quickly erected without the need for mechanical lifting during installation, with only a small engineering team.
Sleek and Modern Design
The pagoda tent is a temporary outdoor activity building with a unique high peak appearance, inspired by the pyramid architecture of ancient Egypt. Having a stylish, sleek, and modern design, it is one of the top choices for outdoor events.
Long Service Life
The frame of the pagoda tent is made of 6061-T6 high-strength aluminum alloy, with a service life of up to 20 years. Besides, the top cover uses high-strength polyester fibers as the base fabric, combined with double-sided PVC coating treatment. Its service life can be up to 5 years.
parameter table
Pagoda Tent Specification
| Span(m) | Eave Height (m) | Bay Distance (m) | Length(m) | Main Profile (mm) | Max Wind Load |
| 3 | 2.5 | 3.0 | 3.0 | 63x63x1.8 | 120 km/h |
| 4 | 4.0 | 4.0 | |||
| 5 | 5.0 | 5.0 | 64x64x2.5 | ||
| 7 | 2.6 | 7.0 | 7.0 | 68x122x3/5 | 140 km/h |
| 8 | 8.0 | 8.0 | |||
| 9 | 9.0 | 9.0 | |||
| 10 | 10.0 | 10.0 |
| Frame | Specifications |
| Materials | Aluminum Alloy Frame/Q235 Steel Components |
| Color | Original Color/ White Coating Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Cover | Specifications |
| Materials | High-Strength PVC Coated Fabric |
| Color | White/ Transparent/ Customized Color |
| Light Transmittance | Full Shading / Semi-Shading / Full Transparency |
| Fire Retardance | Meet international fire safety standards (DIN4102: B1/ M2) |
| Accessries | Specifications |
| Sidewall |
|
standardization
MEGASTAR VS Others
structure
We Supply the Accessories You Need
Aluminum Frame
Certified Fabric
Anchoring & Connections
production equipment
High Efficiency & Quality Control
Aluminum CNC Machining Center
PVC Fabric CNC Cutting Machine
Aluminum CNC sawing machine
find your answers
The most common questions
What Do I Need to Consider When Choosing the Size of a Pagoda Tent?
The following factors are needed to considered:
The purpose of your event: A larger tent may be needed for a seated event or a formal gathering, while a smaller size could work for temporary outdoor events or booths.
The venue condition: Ensure the venue can accommodate the size you’re choosing.
The number of guests: The tent size always needs to match the expected guest count.Is It Easy to Install a Pagoda Tent?
Yes. Small to medium-sized pagoda tents (3x3m to 6x6m) are relatively straightforward to set up and can often be handled within hours without professional assistance. The installation process of large tents (8x8m and above) is relatively complicated, but it can still be quickly completed without the need for mechanical lifting, requiring only a small engineering team.
Which Aspect Can I Customize of the Pagoda Tent？
We offer different sizes of pagoda tents for you. Besides, all accessories can be used for all pagoda tents, including wall options, door options, roof options, and other accessories. Compared to conventional tarpaulins, our PVC fabric can be customized in different colors and patterns to meet your needs.
Can a Pagoda Tent Still Function Properly in Strong Winds?
Of course. Our pagoda tent can still function properly in strong winds. We use high-quality materials and hard aluminum alloy structural frames. The maximum wind load of a small pagoda tent (3x3m to 5x5m) is 120 km/h, and the maximum wind load of a large pagoda tent (6x6m to 10x10m) is 140 km/h.
